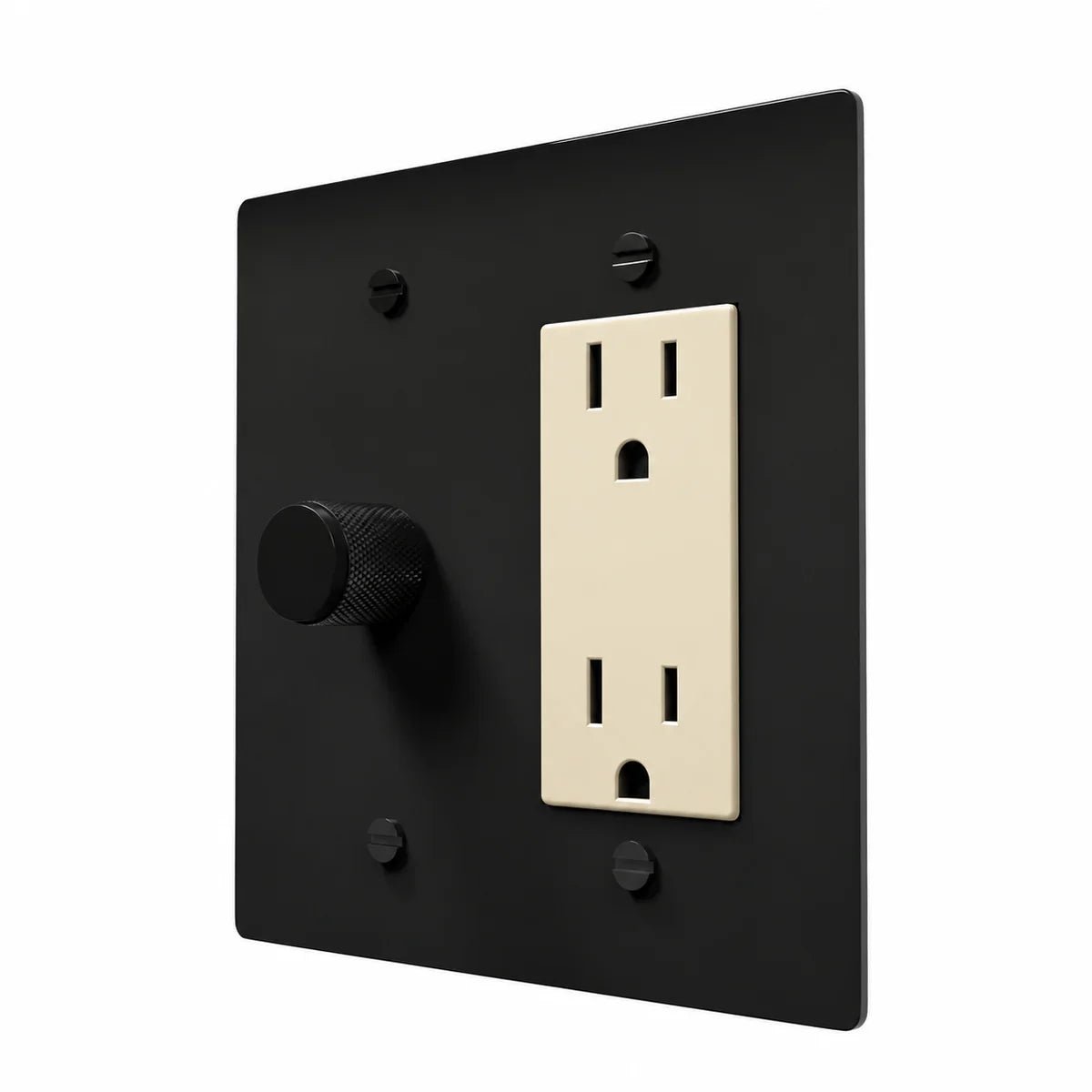

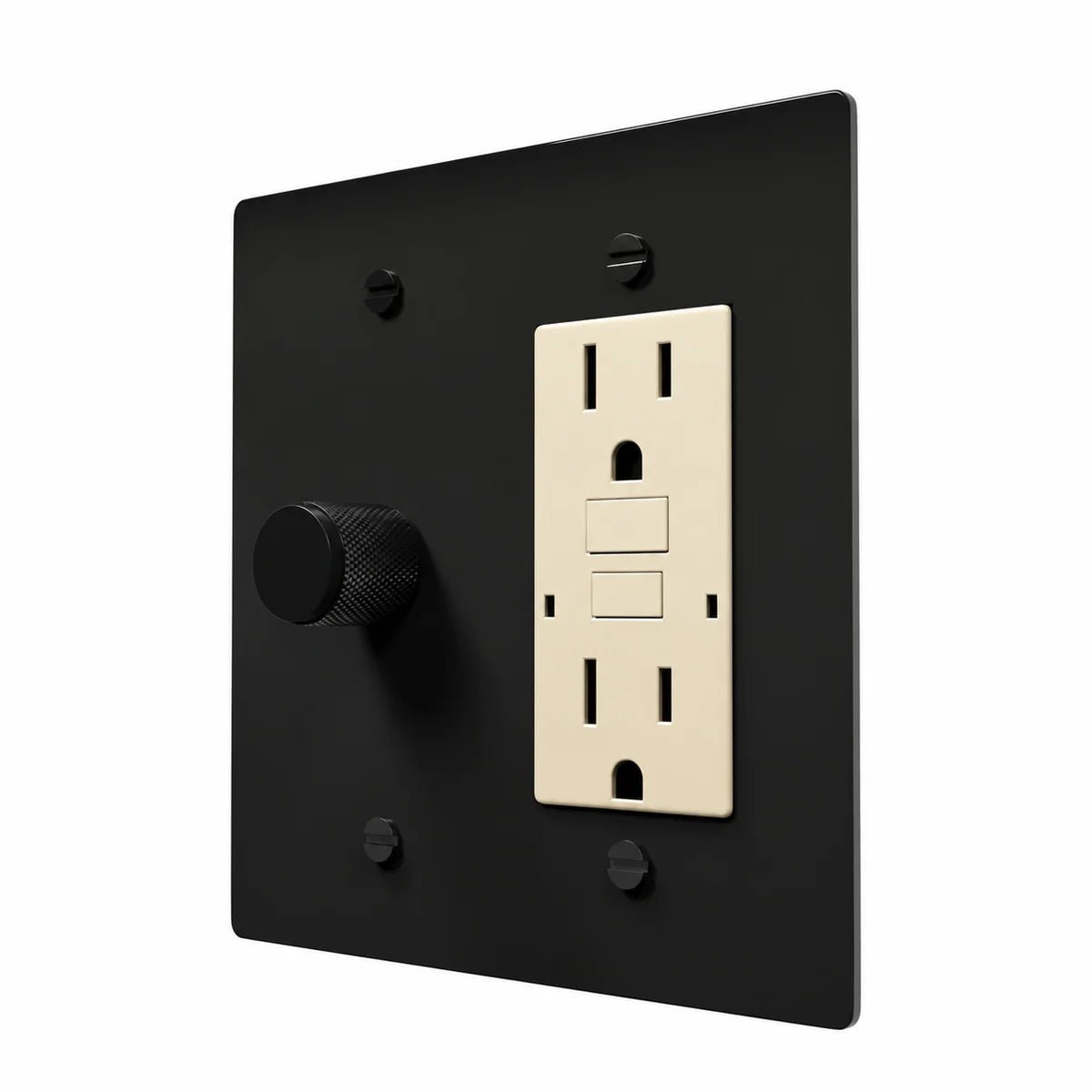

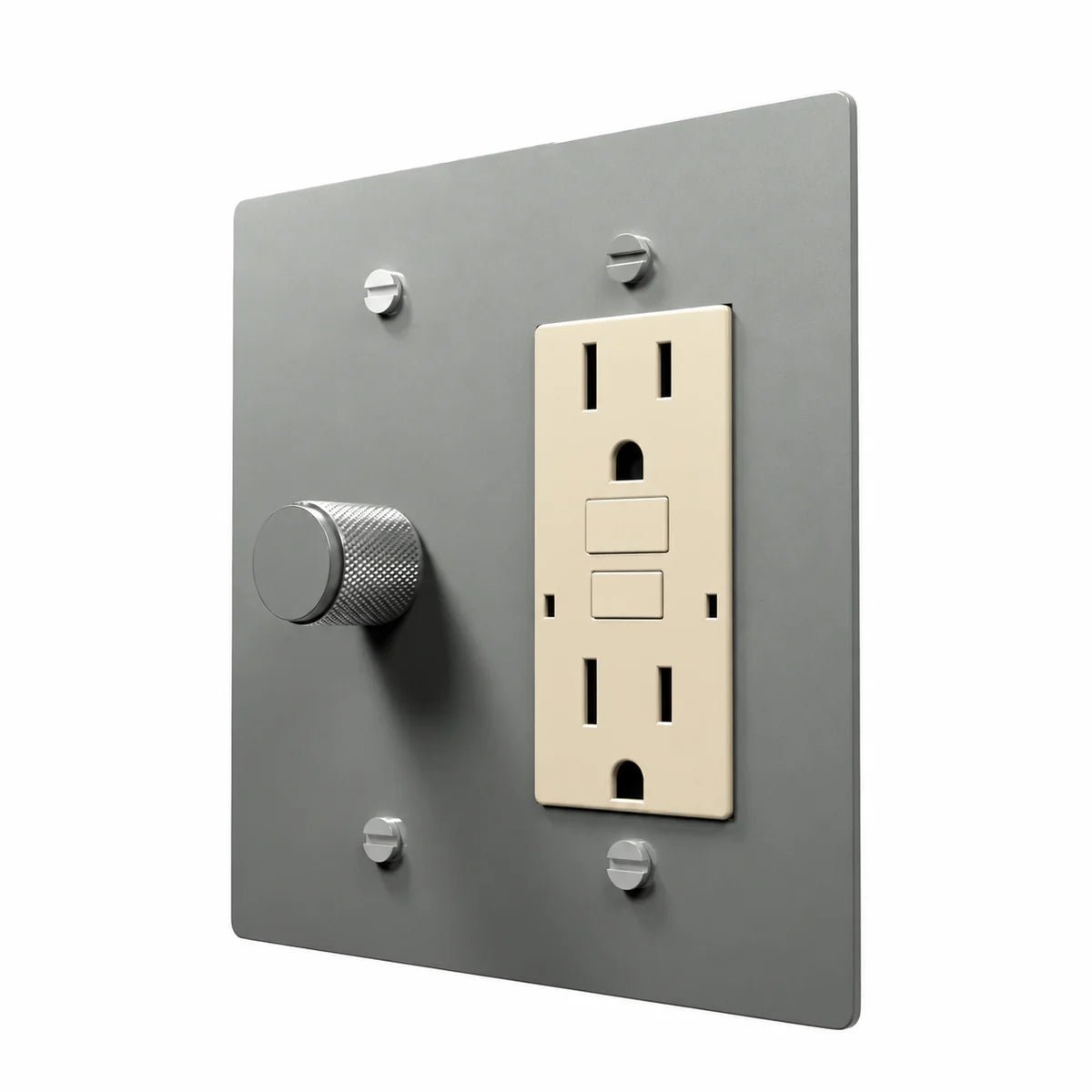

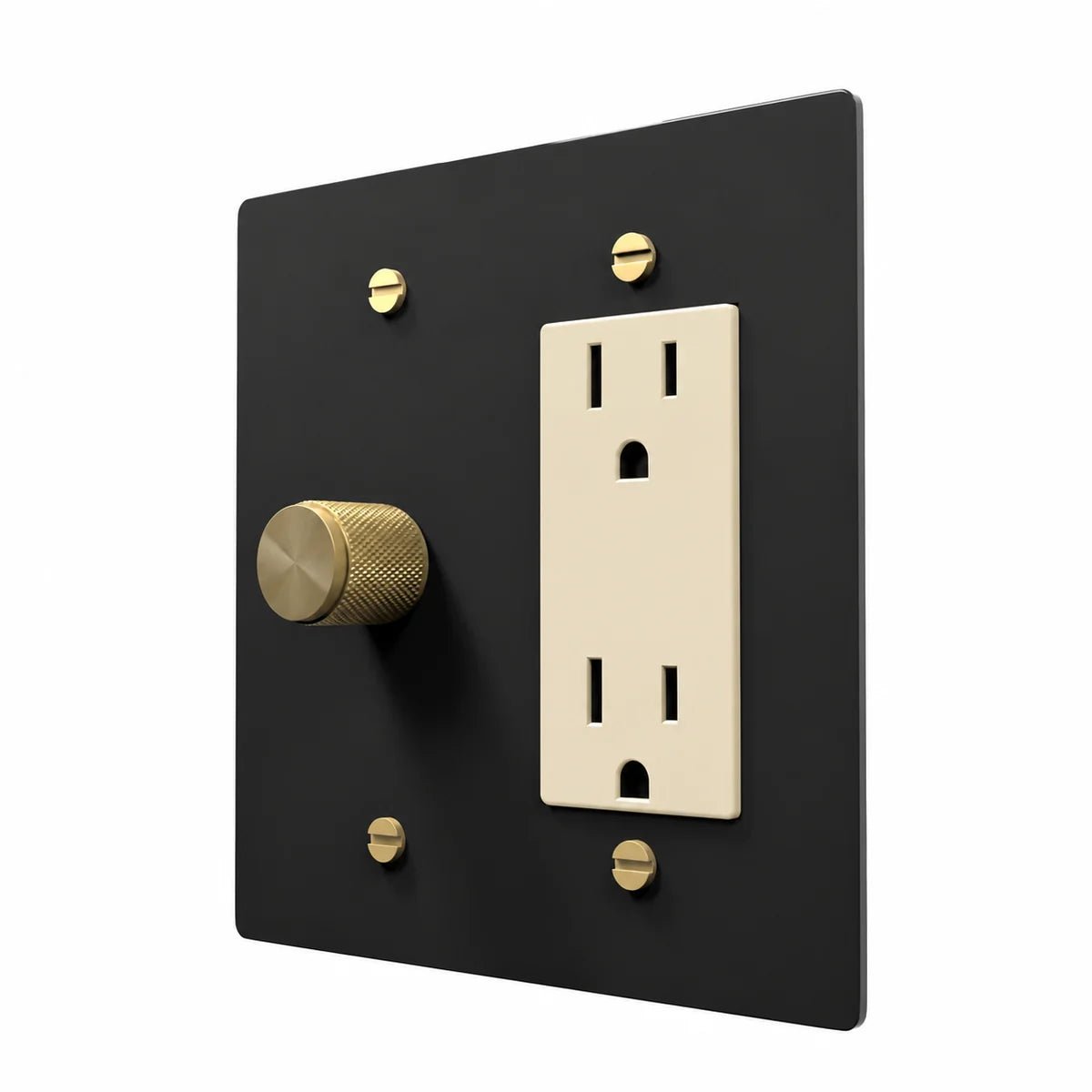

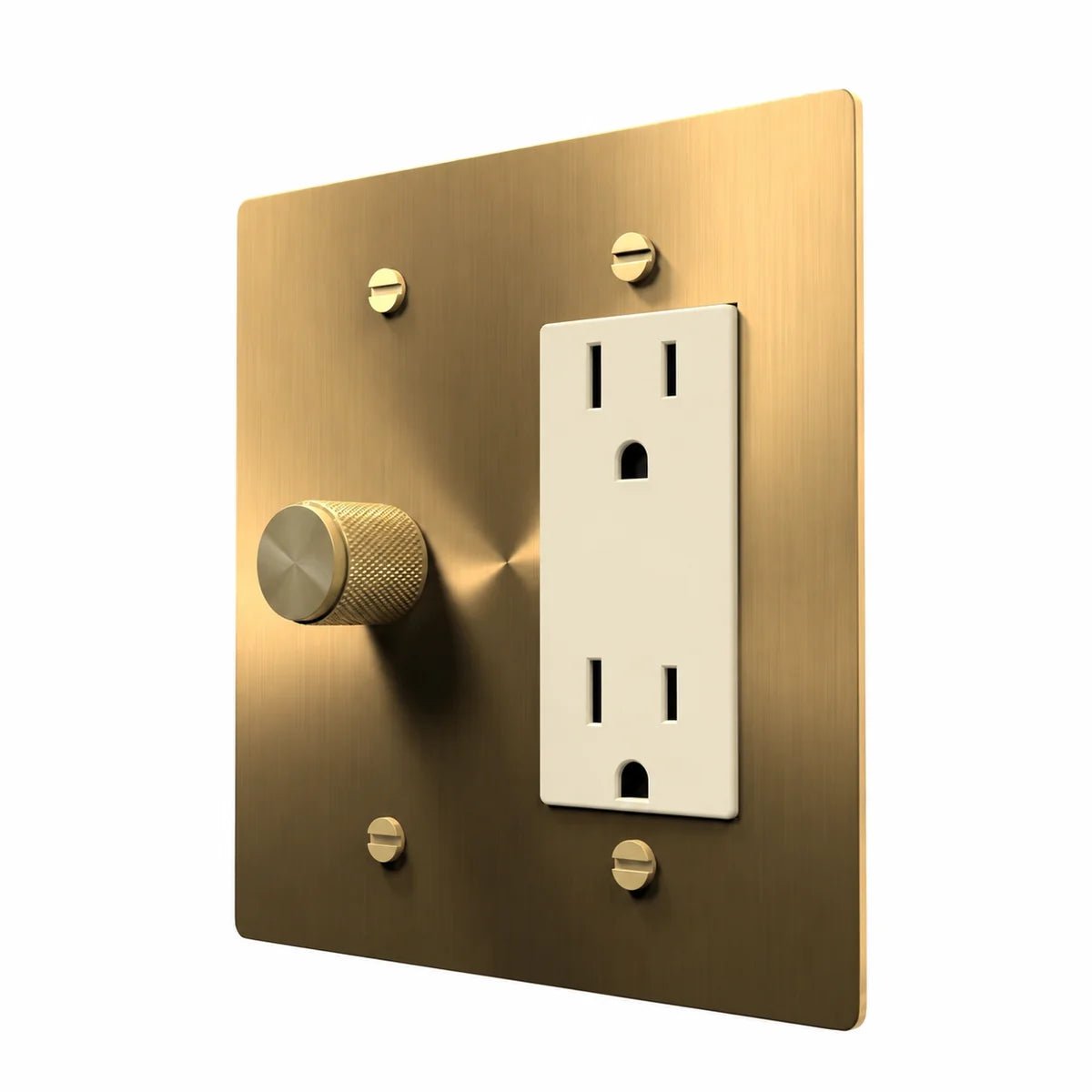

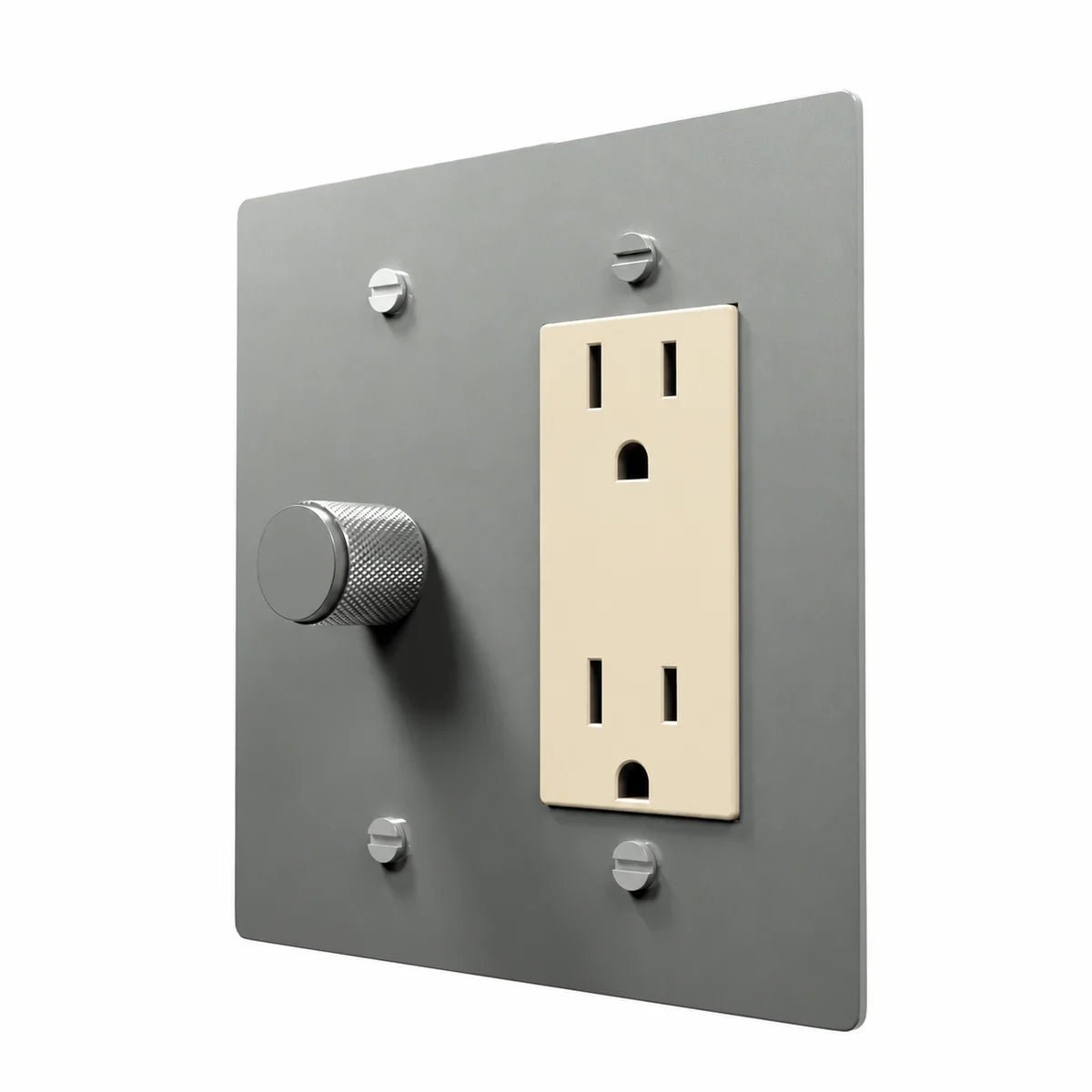

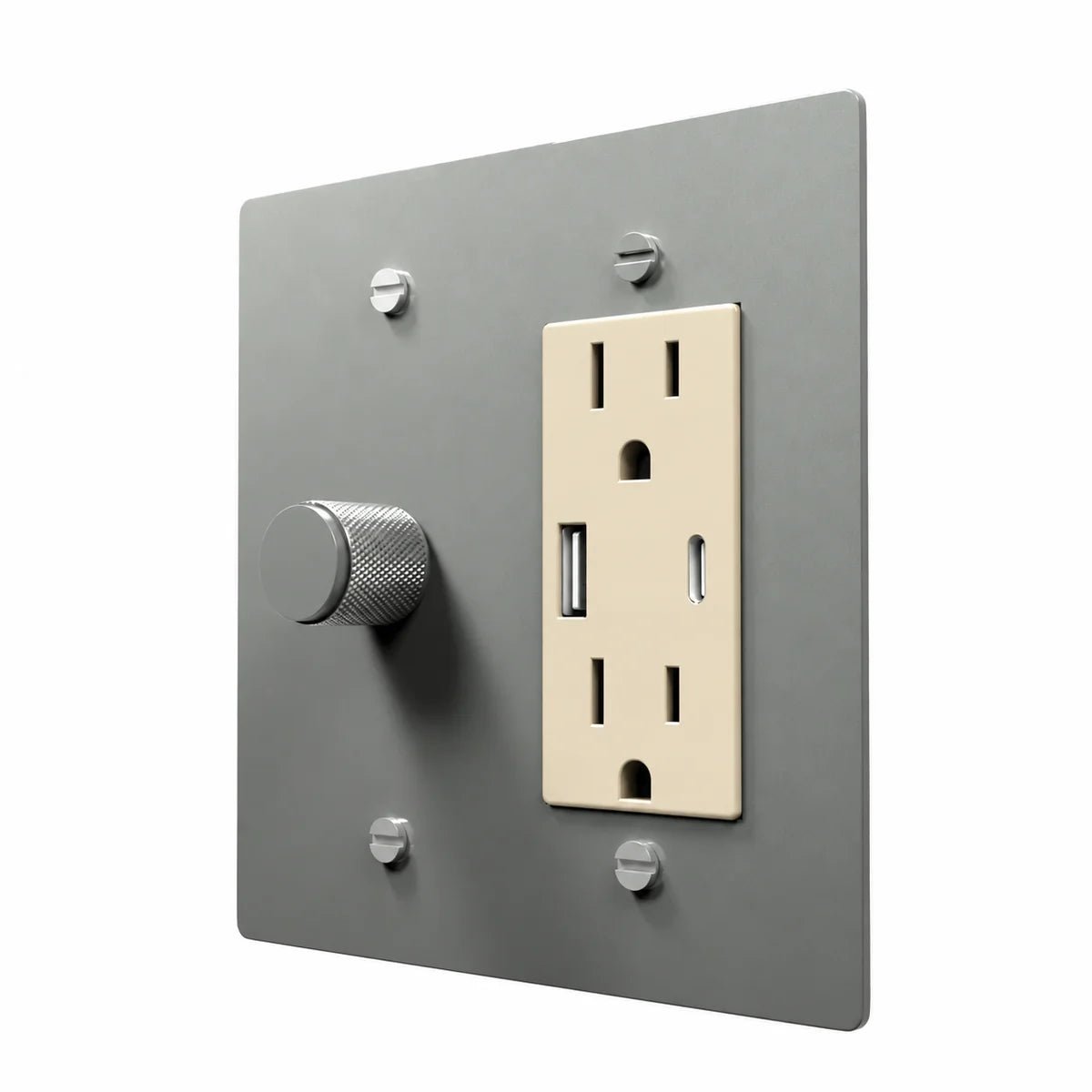

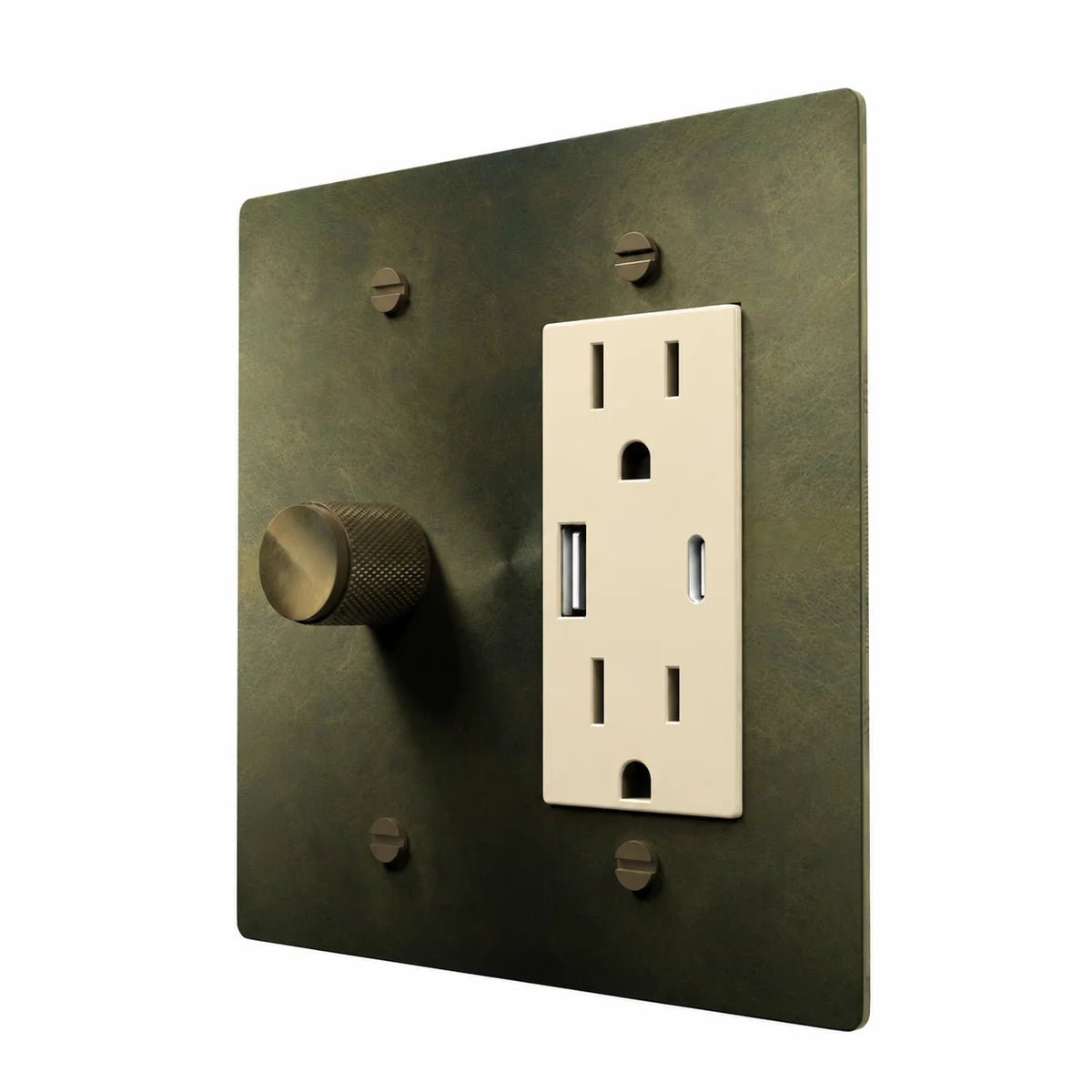

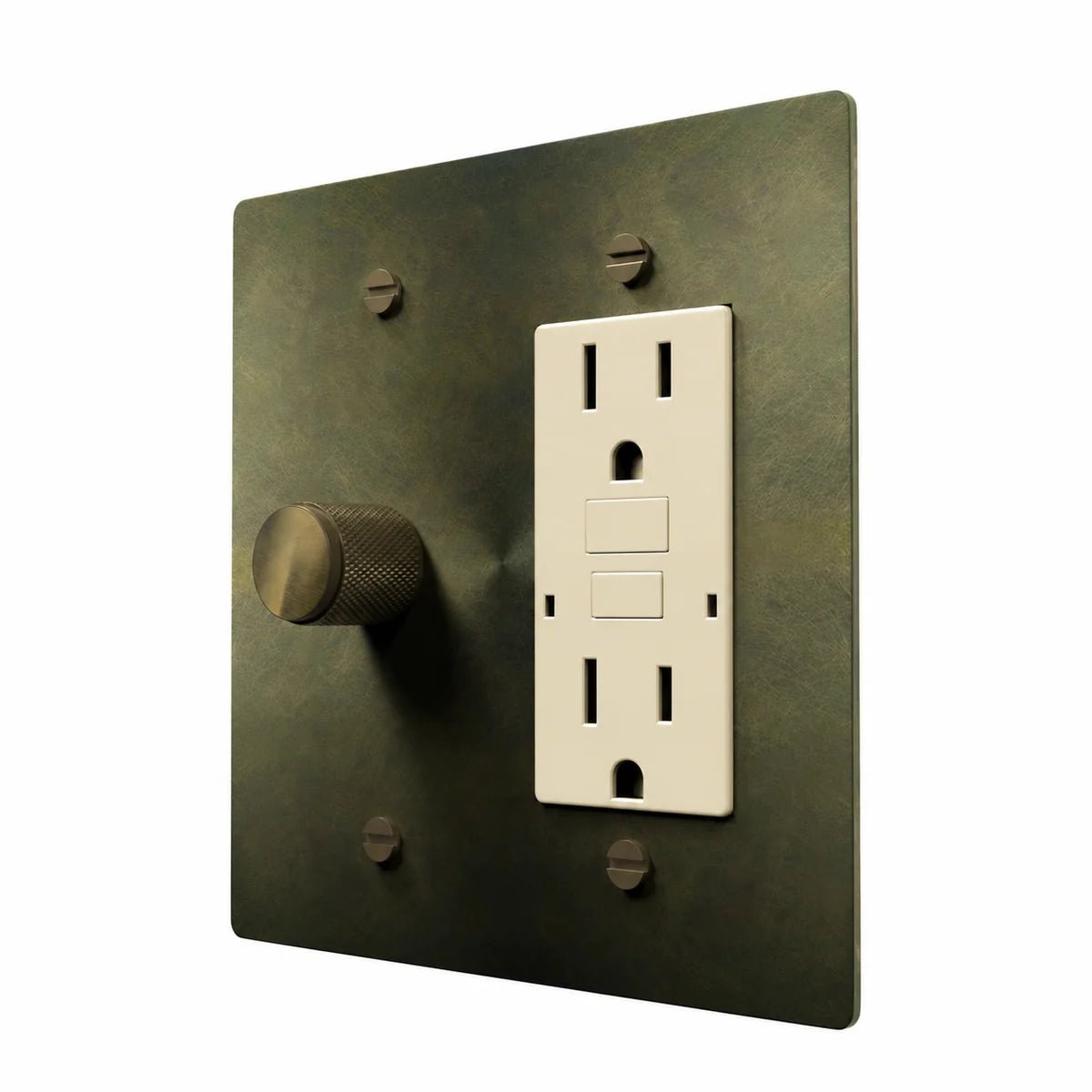

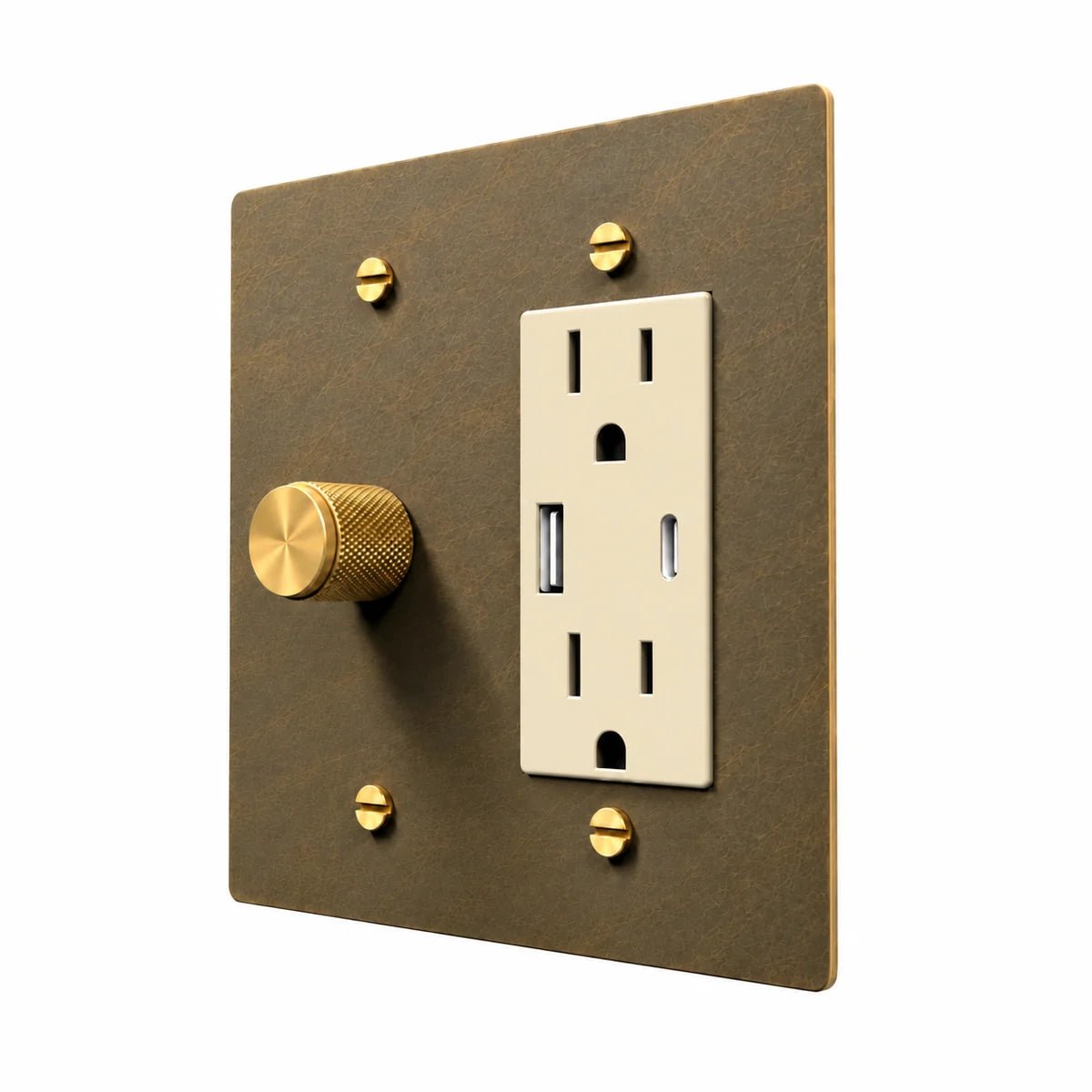

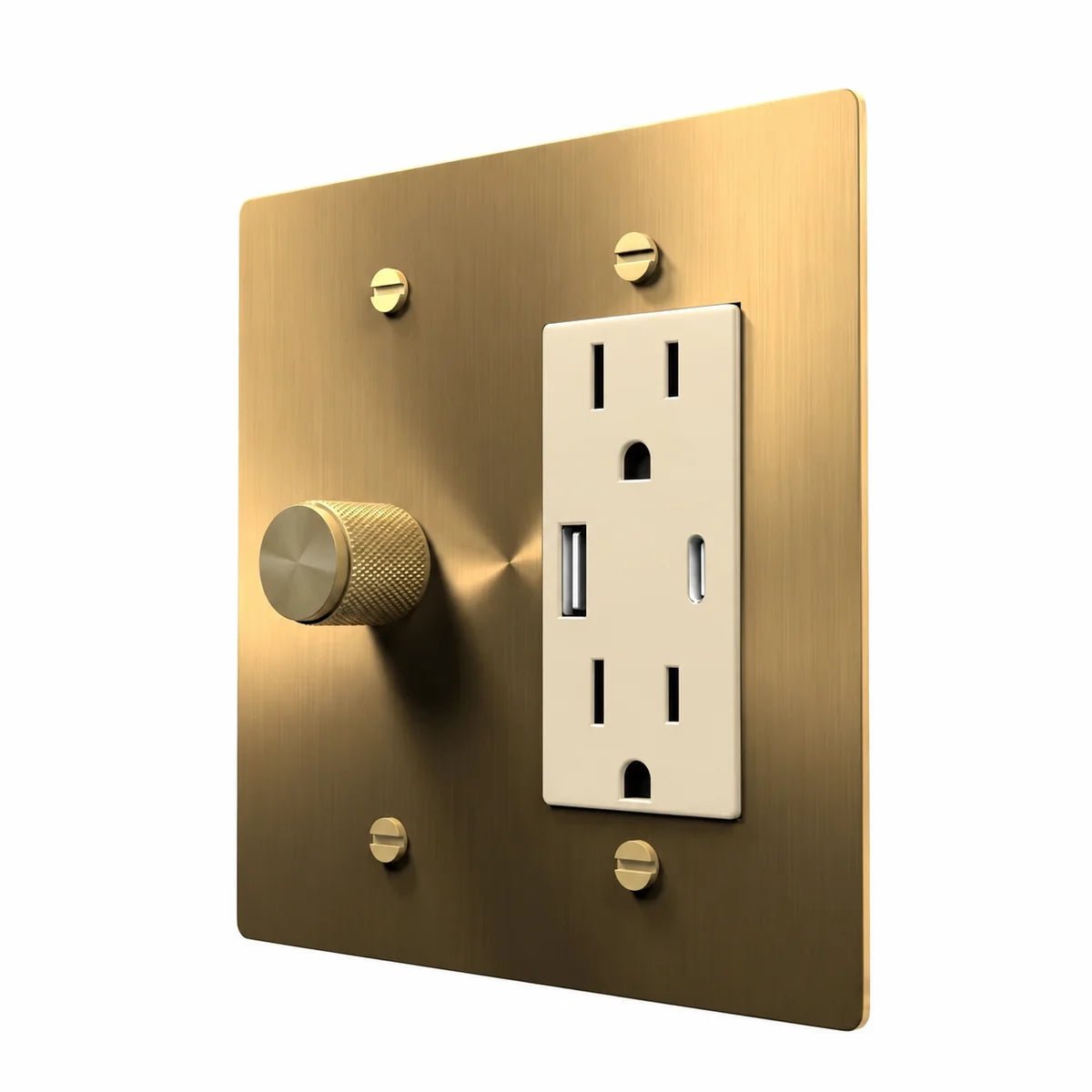

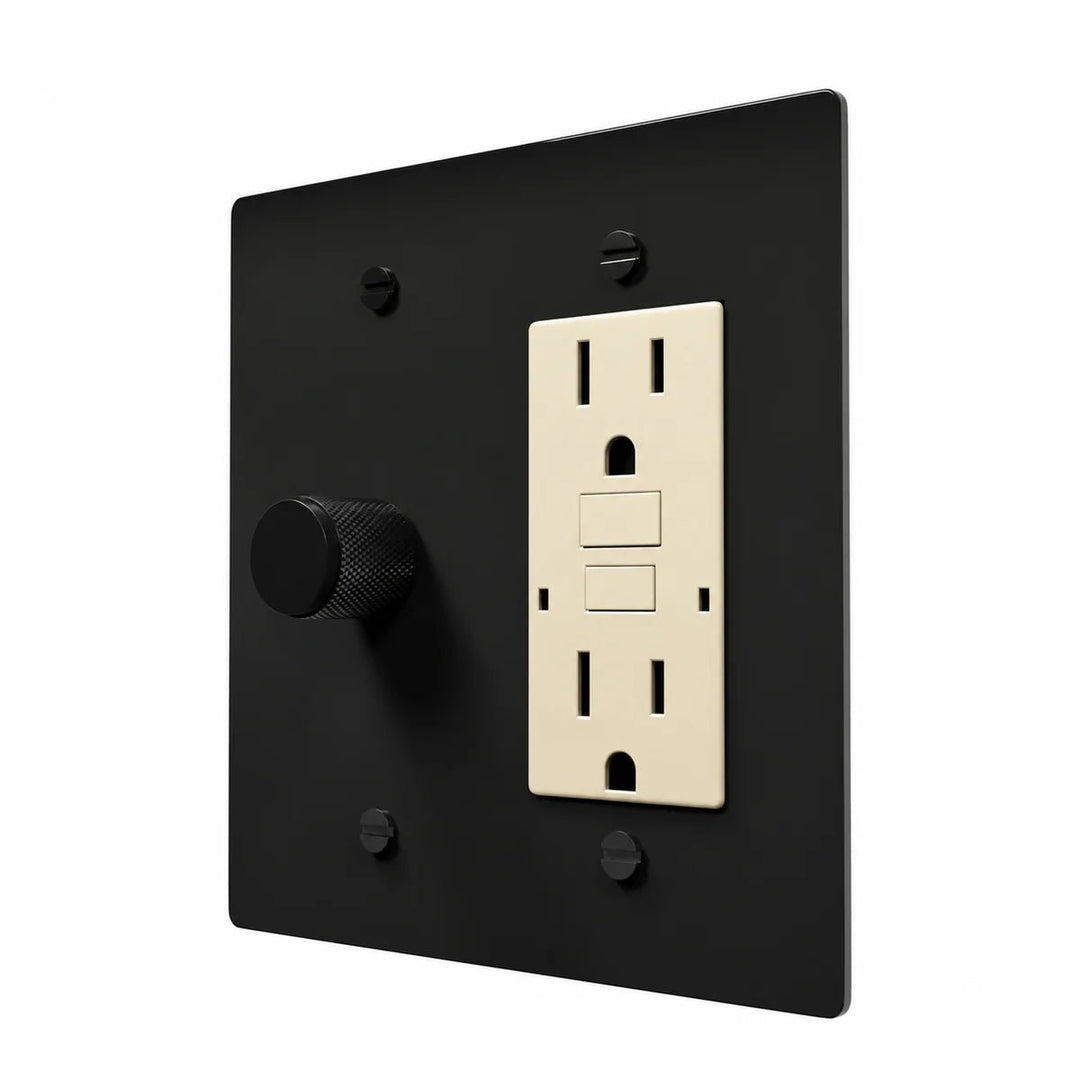

Brass Dimmer & Outlet Combo Switch Plate – Solid Brass 2-in-1 Layout
Streamline your lighting and power needs with this dual-function brass wall plate. One rotary dimmer and one standard outlet opening on a single plate, machined from 0.080″ thick solid brass — perfect for minimalist or detail-driven interiors.
Why You’ll Love It
-
Space-efficient combo: Dimmer switch + outlet in one sleek brass plate
-
Solid brass material: Architectural-grade, never plated
-
Lacquered finishes: Resist fingerprints and tarnishing
-

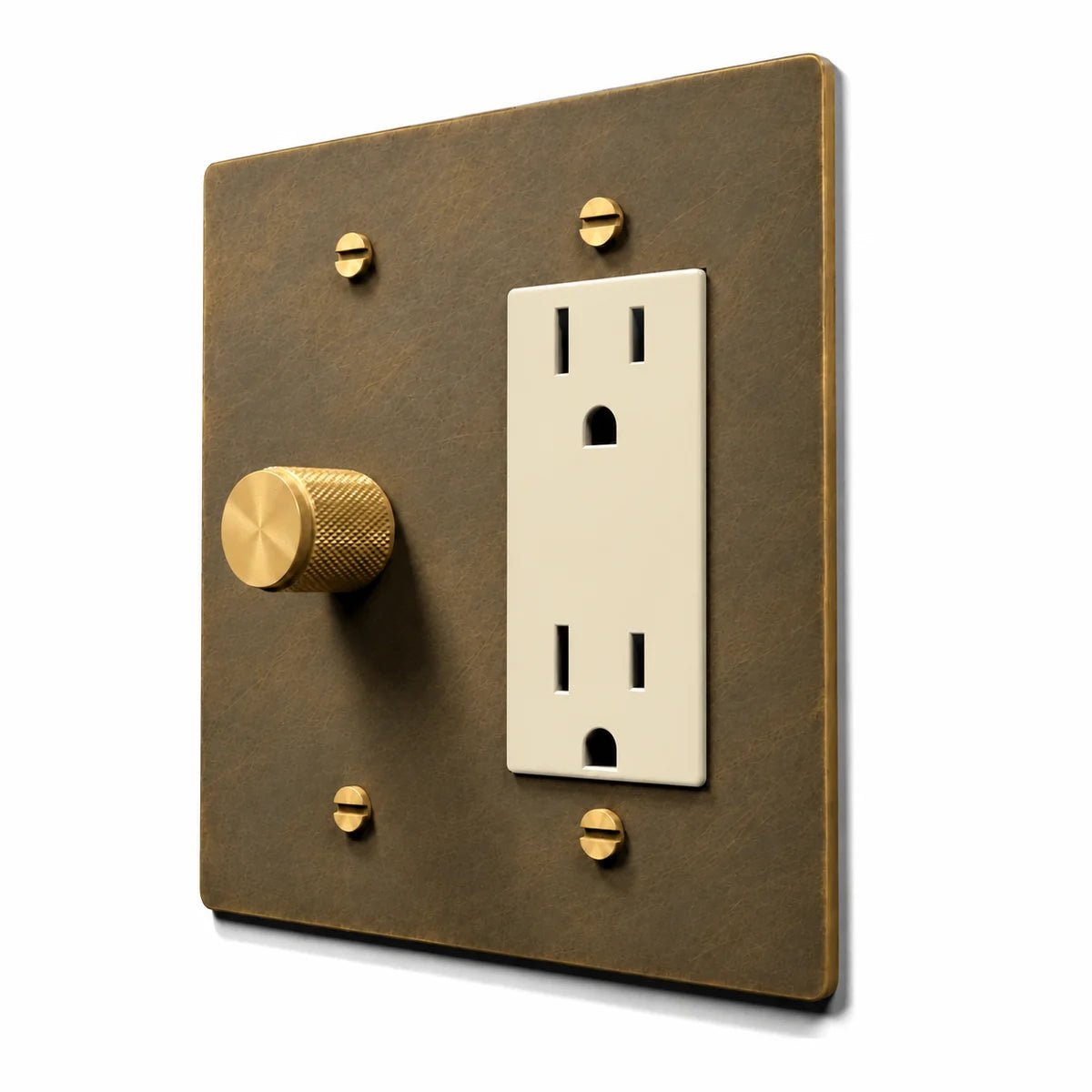

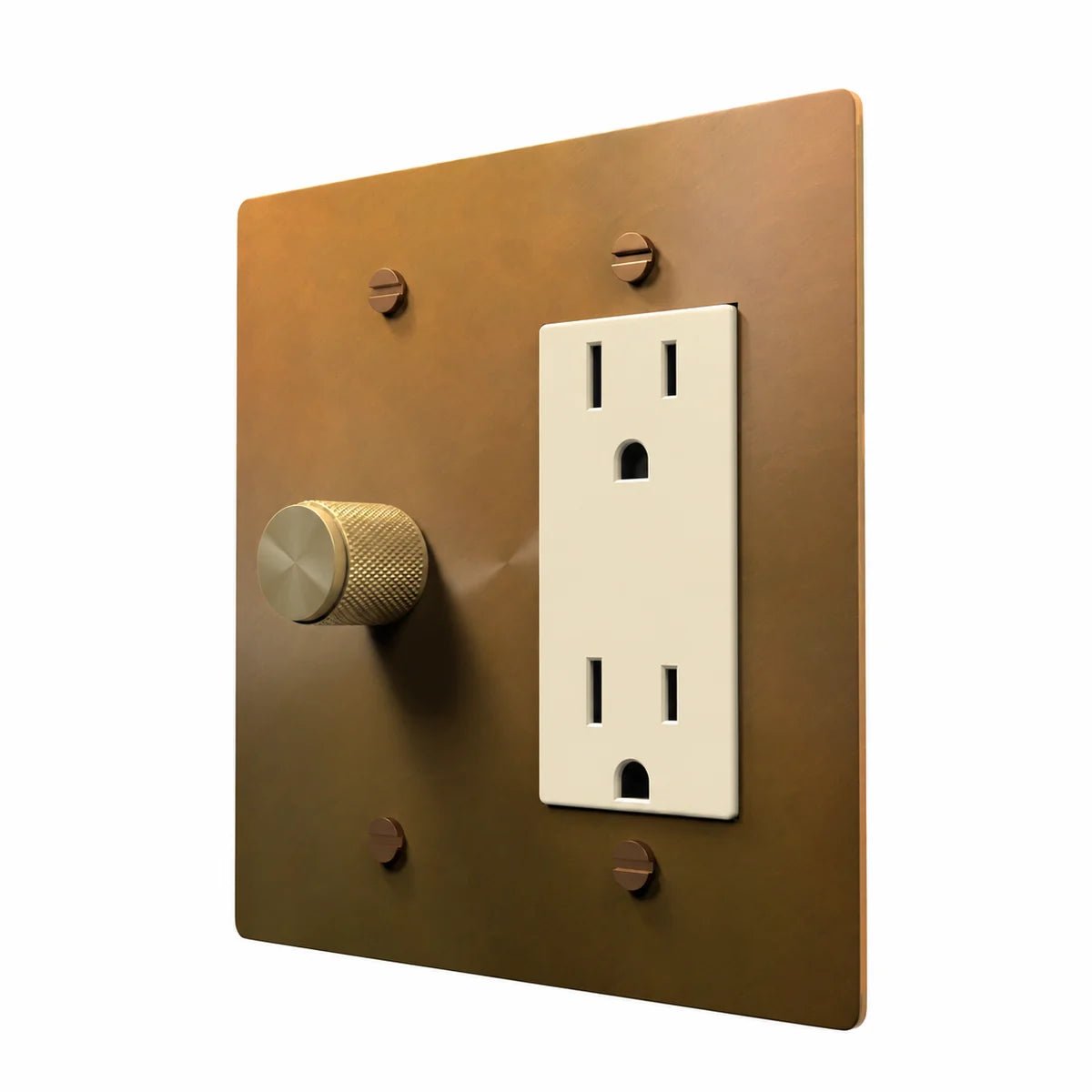

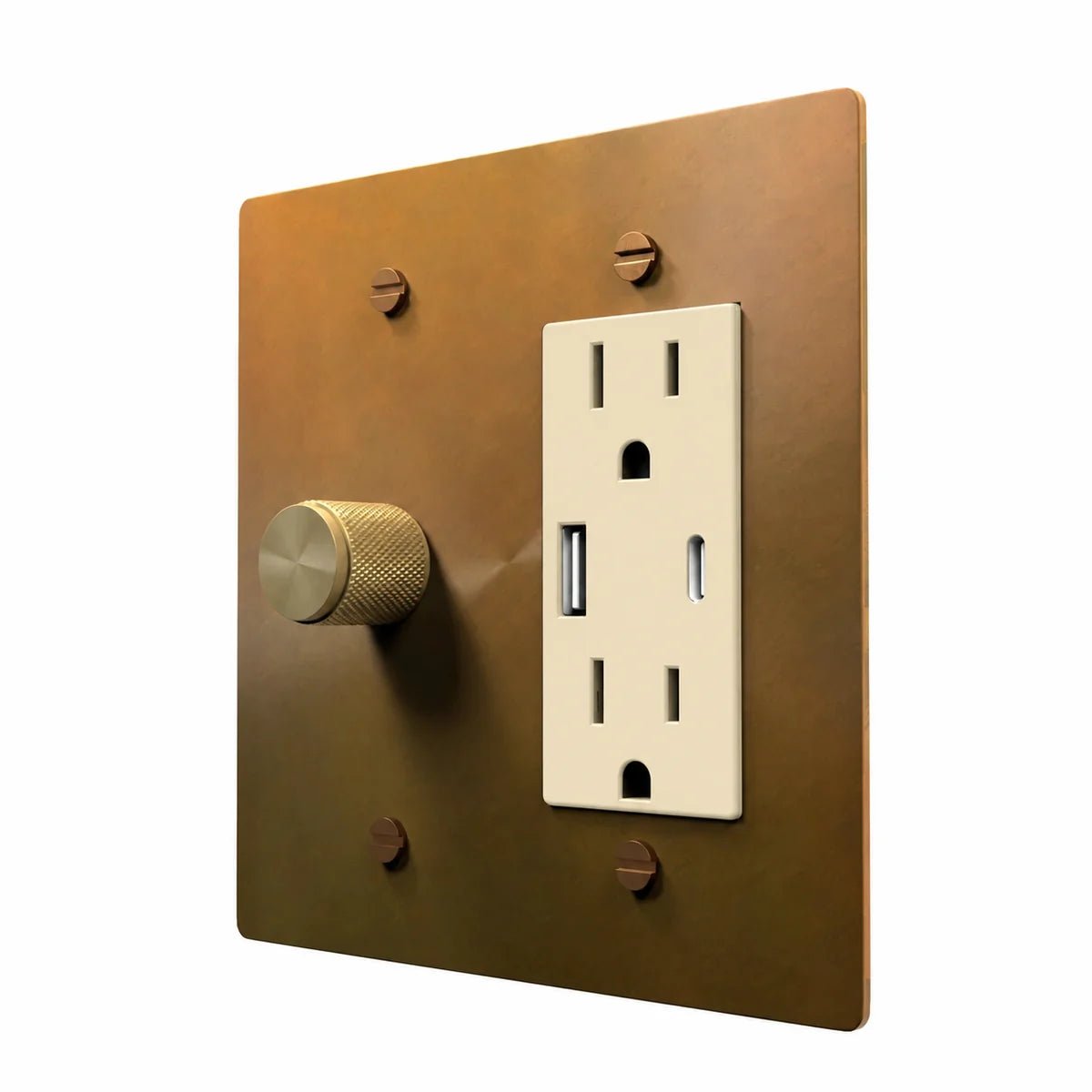

Unlacquered aged brass: A raw finish that develops a living patina
-
Easy installation: Matching lacquered brass screws included
Specs & Compatibility
-
Plate Thickness: 0.080″ (2mm) solid brass
-
Gang Layout: Left = Dimmer / Right = Duplex Outlet — plate is flippable (can be installed either way)
-
Fits: Standard U.S. electrical wall boxes
-
Pair With: Our TRIAC dimmers and decorative outlets
Technical Specifications
Dimmer Specifications
The following specifications apply to the dimmer module, with load ratings stated per dimmer.
-
Dimming Type: Leading Edge (TRIAC)
-
Voltage: 110–120V | 50/60Hz
-
Load Ratings:
- Dimmable LED & halogen: 3–150 W
- Incandescent: 40–600 W
-
Built-in thermal protection: automatic safety cutoff
-
Temperature rating (Ta): up to 130°C (266°F)
-
Mechanical life: 10,000+ dimming cycles (minimum)
-
Housing: flame-retardant polycarbonate (PC)
-
Fit: fits standard North American single-gang electrical wall boxes
-
Certification: UL Certified (U.S. & Canada)
Single-Pole vs 3-Way
-
Single-Pole: Click ON/OFF while rotating the knob, then continue turning to adjust brightness. For lighting controlled from one location.
-
3-Way: Push the knob for ON/OFF, then rotate to adjust brightness. Suitable for single-pole or 3-way wiring; in a 3-way setup, switching is available from two locations.
The selected dimmer type determines the ON/OFF action. Where a plate includes more than one dimmer, the selected type applies to each dimmer.
Use TRIAC-compatible dimmable lamps or drivers and follow the instructions supplied for the exact module. For multi-gang plates, the complete wall box must match the plate’s gang count; follow any required load derating when dimmers are installed together. The single-gang fit specification above refers to an individual dimmer module.
Outlet
- Outlet rating: select 15A or 20A above

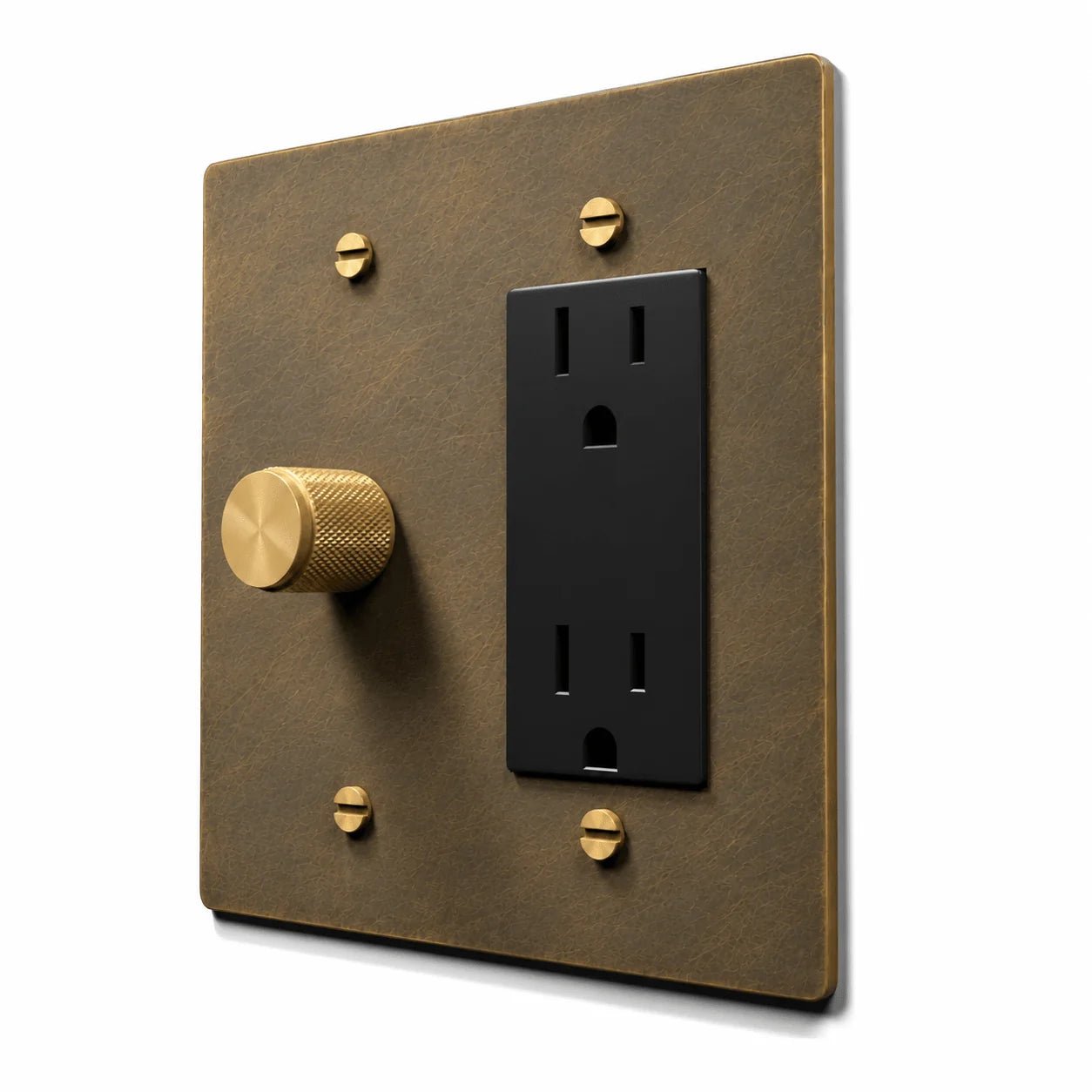

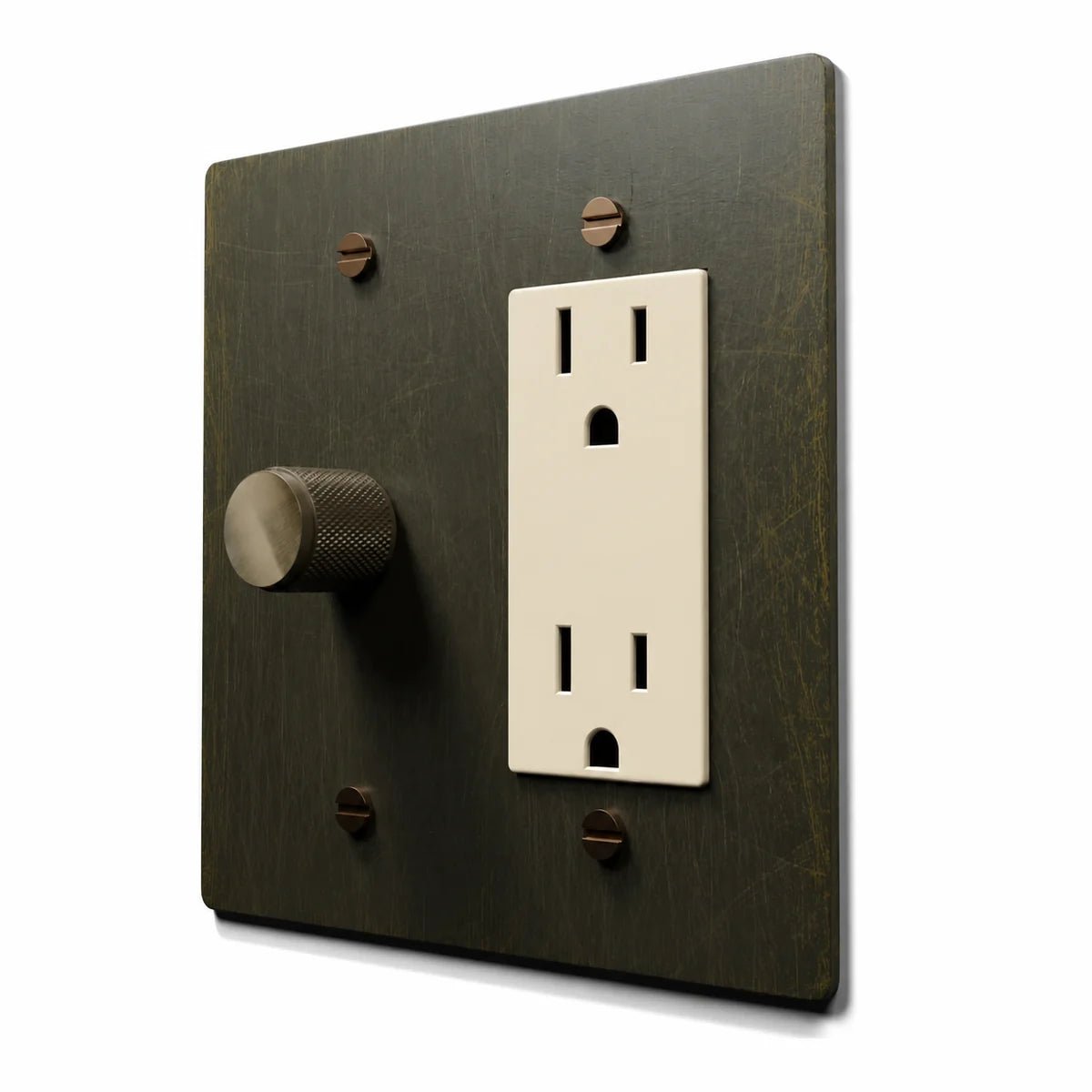

- Receptacle colours: black and white at 15A or 20A; ivory at 15A only
Need a Different Combo or Layout?
This plate features a dimmer + outlet setup. If you’re looking for toggle + dimmer, 3-way dimmers, or a different gang count, check out our Product Configurator to create your own combo with up to 5 gangs.
