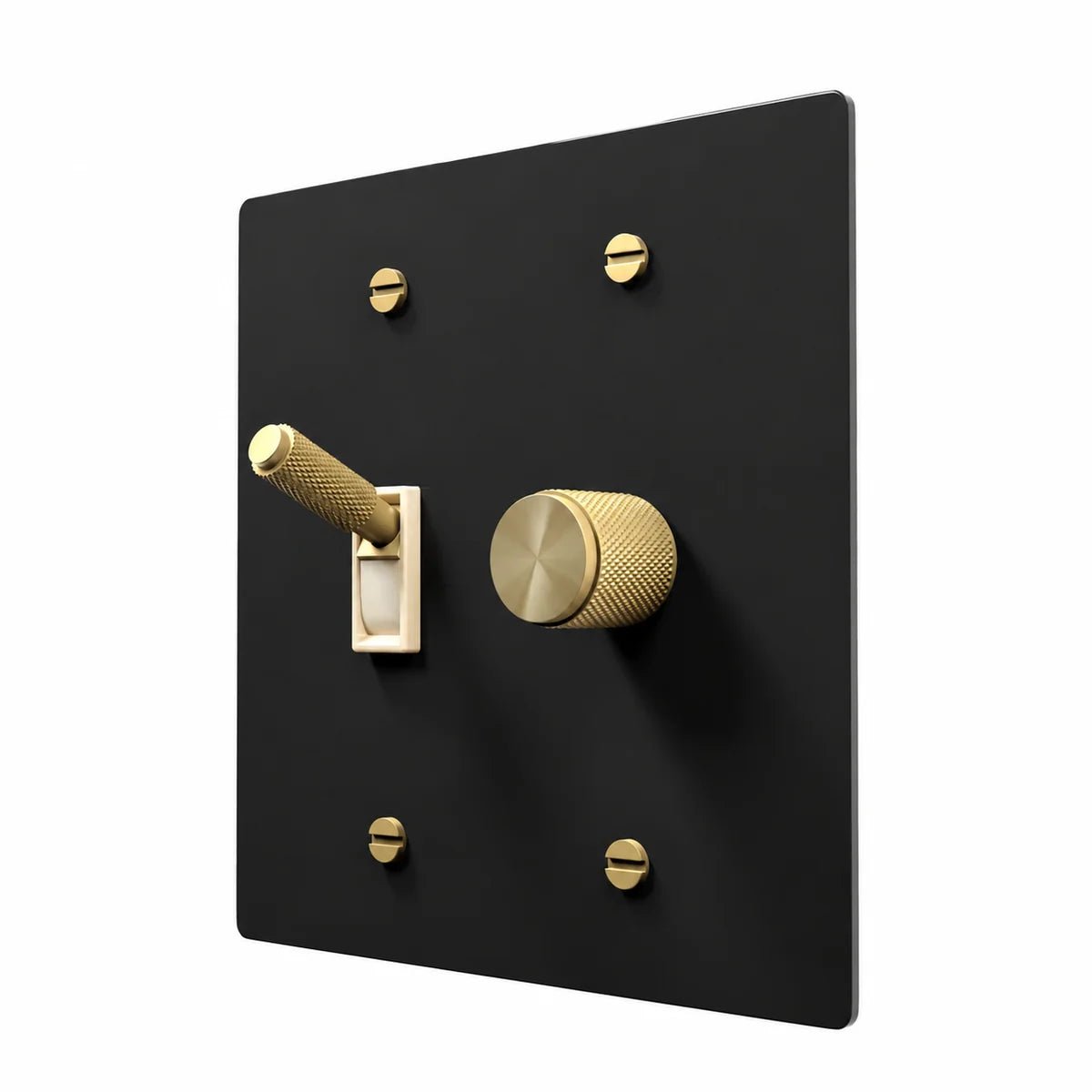

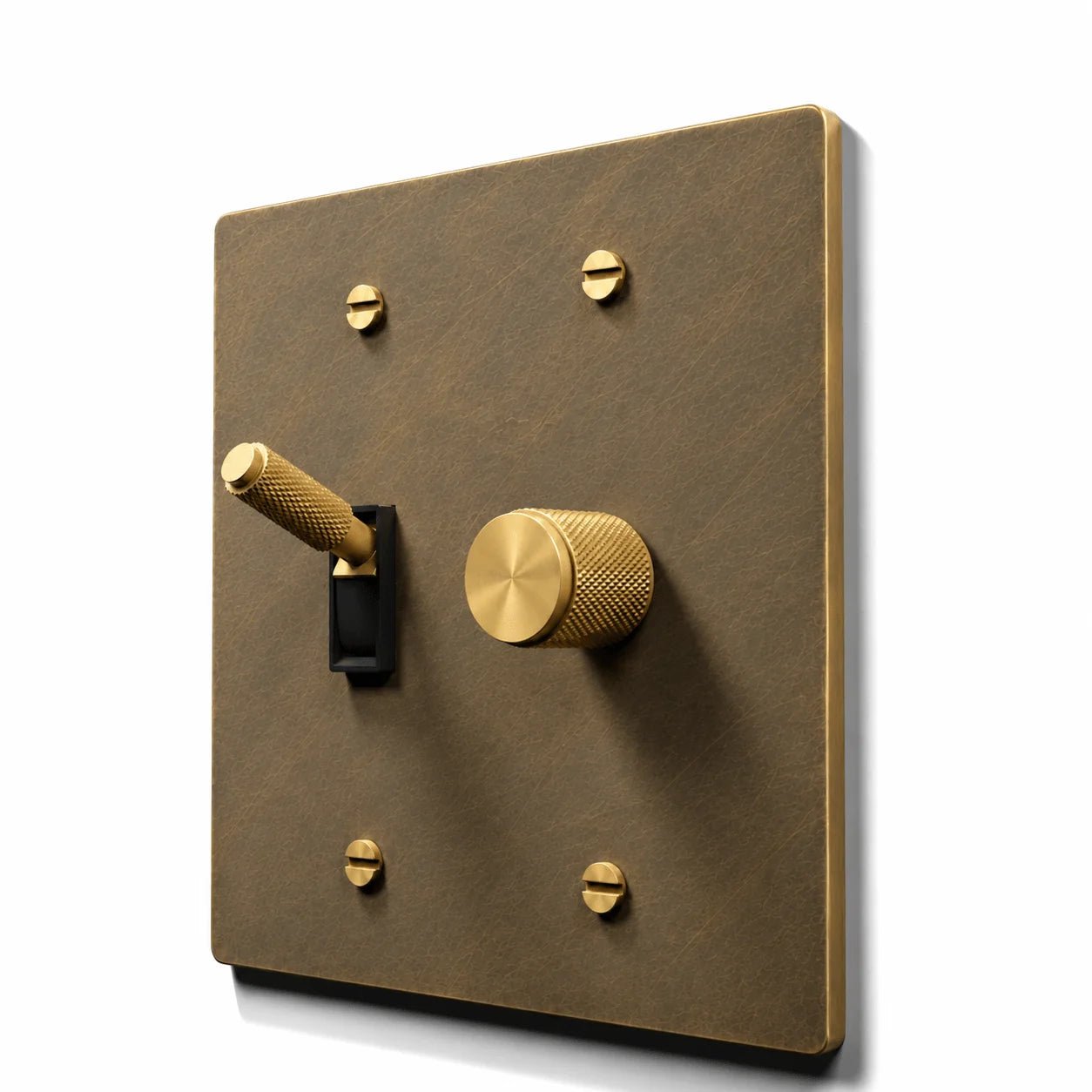

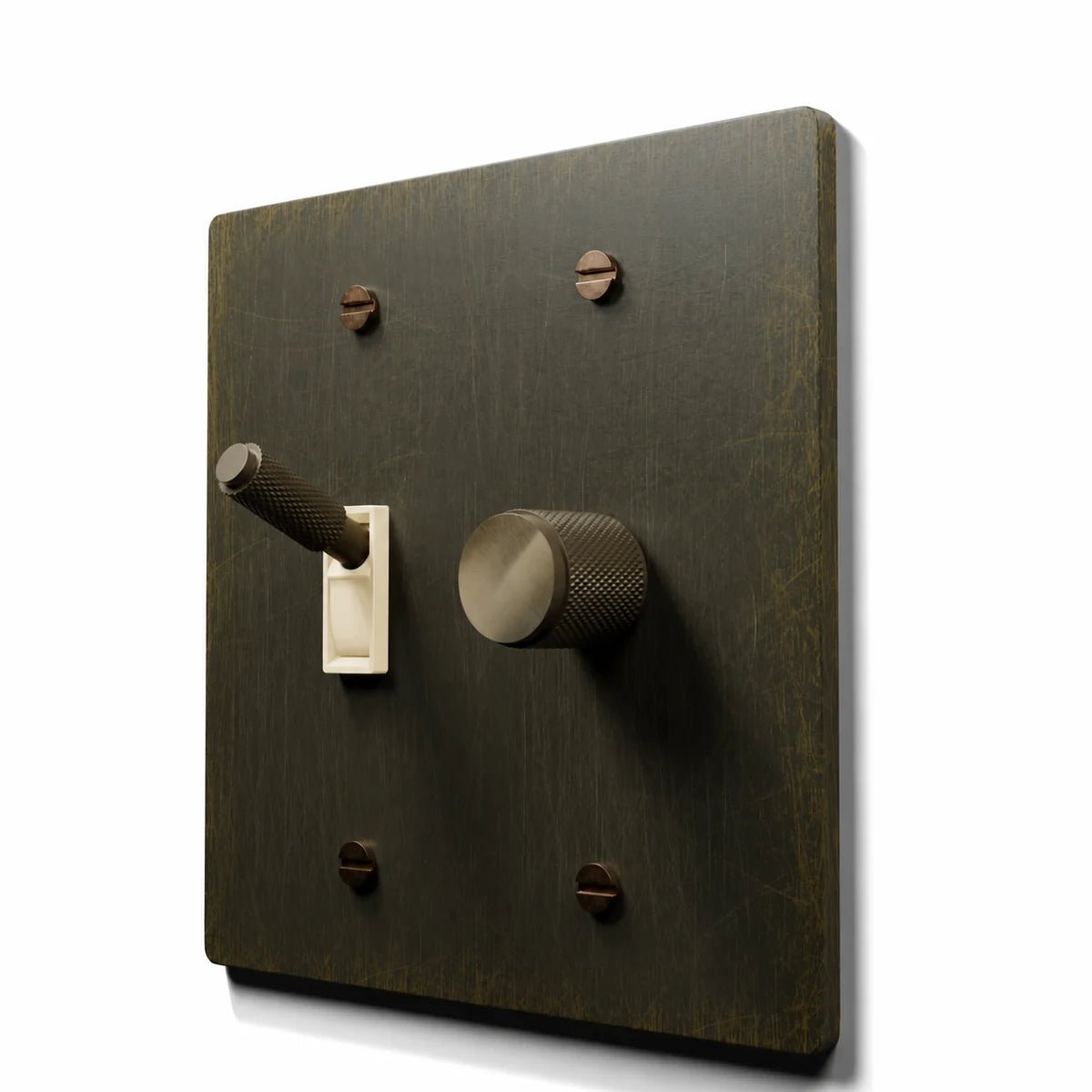

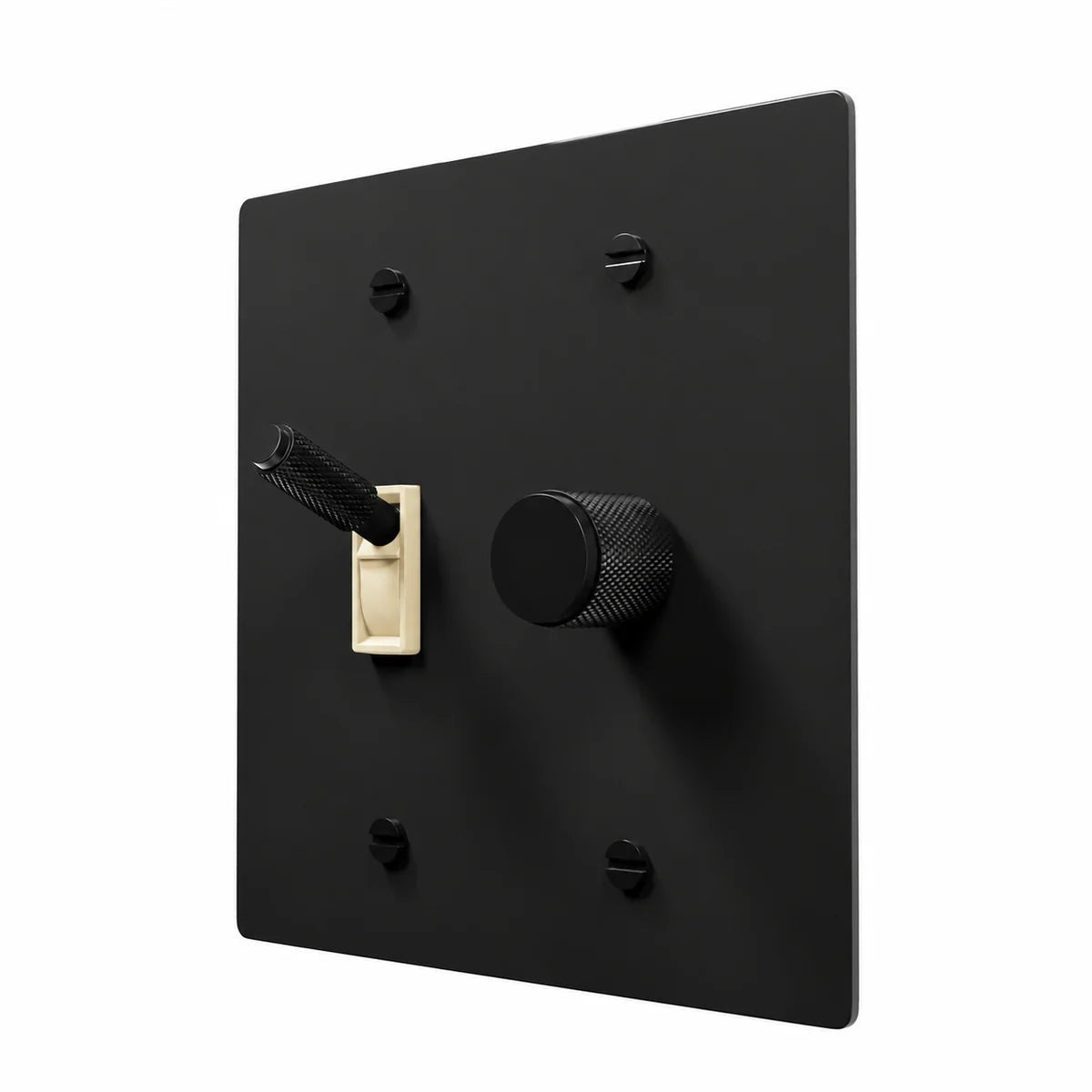

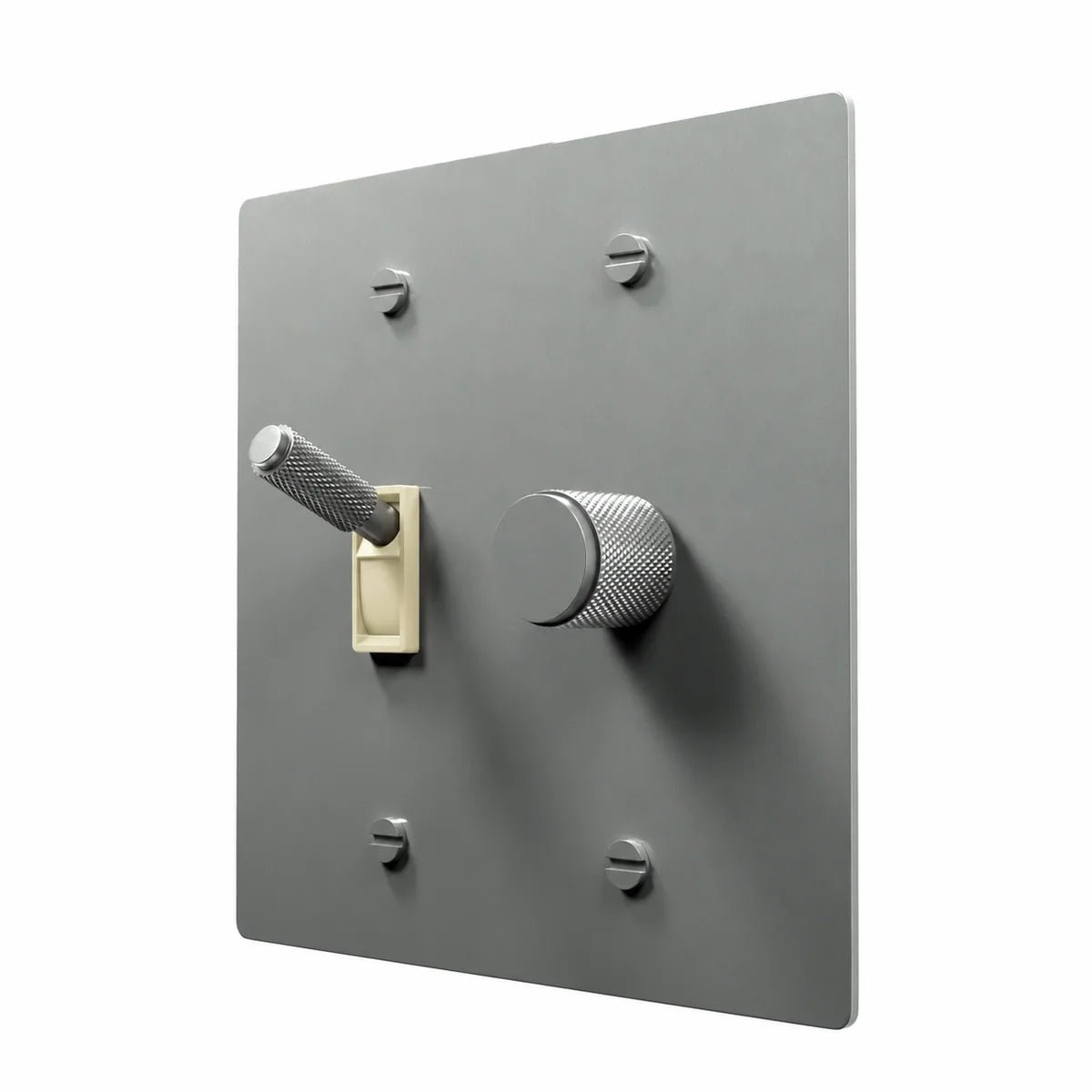

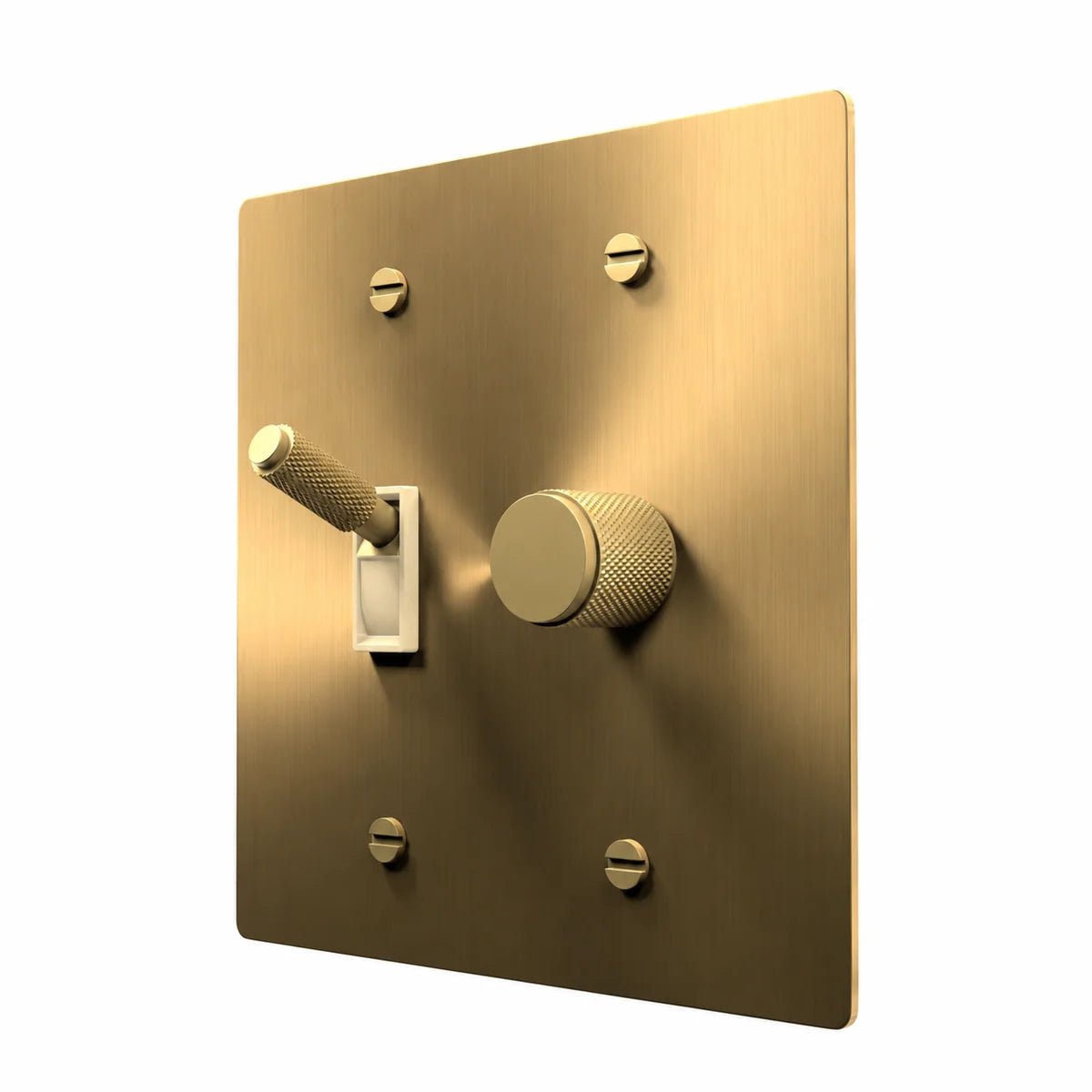

Brass Toggle + Dimmer Combo Plate – Knurled Knob & Lever Switch in Solid Brass
Elevate your interiors with this premium 2-gang brass toggle and dimmer wall plate, combining a knurled toggle switch and rotary dimmer in one sleek design. Crafted from solid 0.080″ thick brass, this designer-grade piece delivers substantial weight, durability, and a distinctive aesthetic — ideal for luxury remodels, boutique interiors, or custom projects.
Pair with matching toggle switches, electrical outlets, or combo plates for a cohesive setup throughout your space.
Premium Craftsmanship

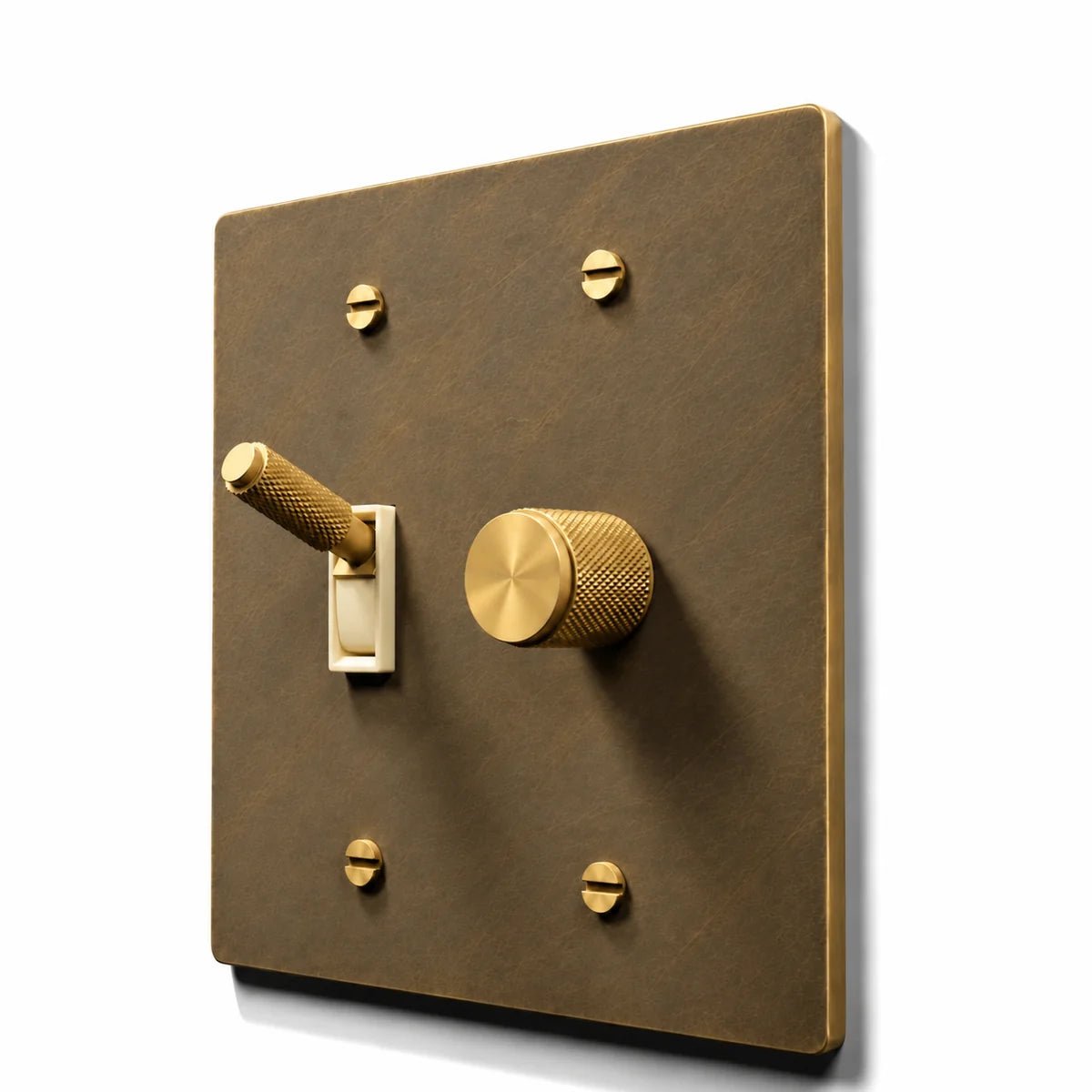

Choose your preferred finish above. Unlacquered Aged Brass is a separate finish choice from Aged Brass and develops a natural patina over time. Check the selected finish before ordering.
🧼 Care instructions: Visit our Brass Hardware Care Guide.
Why You'll Love It
- ✅ Mixed Control Layout – Knurled toggle + rotary dimmer on one plate
- ✅ Solid Brass Plate – 0.080" thick for a weighty, architectural feel

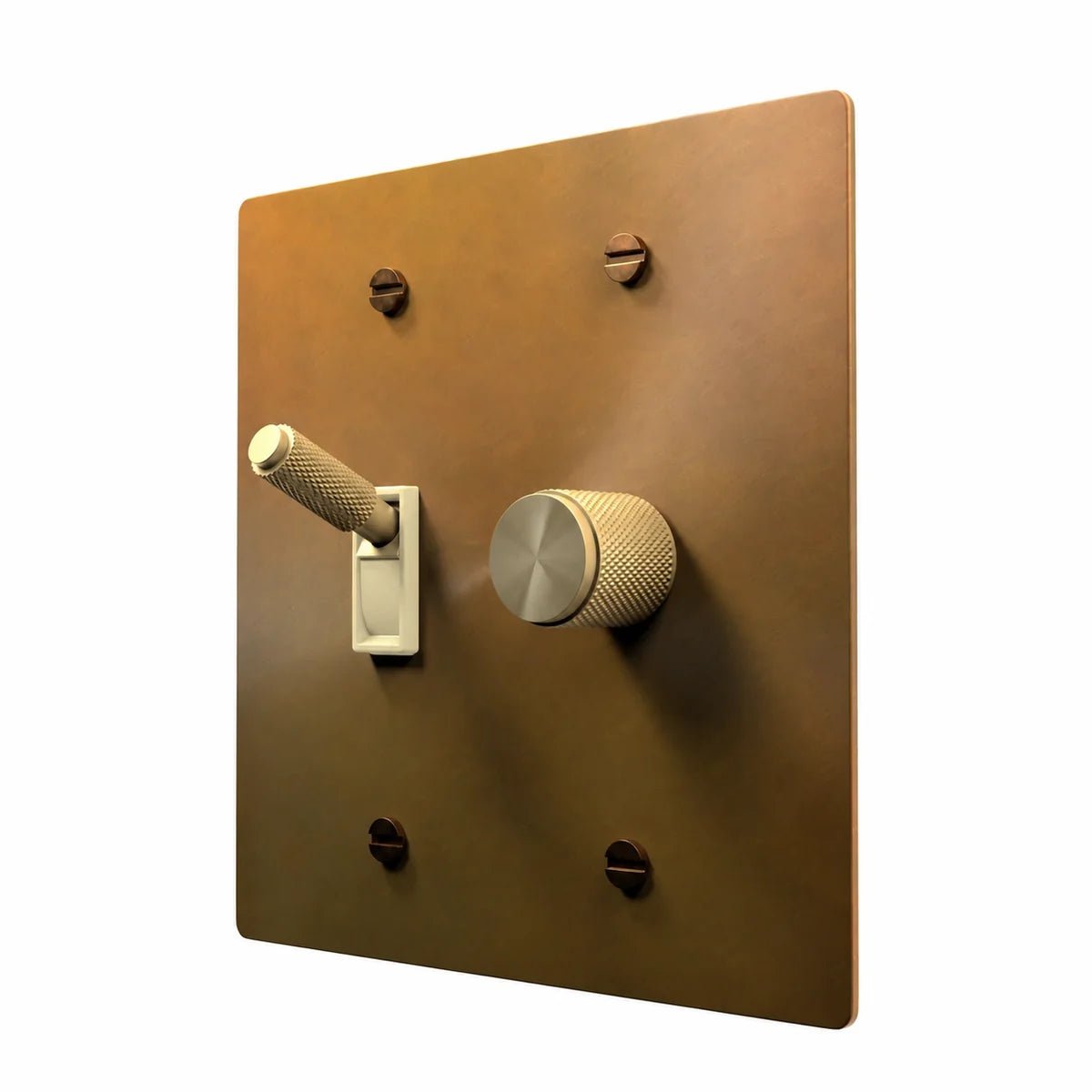

- ✅ Unlacquered Aged Brass Option – For a naturally evolving patina
- ✅ Easy Installation – Includes matching lacquered brass screws
- ✅ Standard U.S. Fit – Fits standard U.S. electrical wall boxes.
Dimensions
- 2-Gang: 4.7″ × 4.7″ (Toggle + Dimmer layout)
Switch Specifications
Toggle Switch
- Type: ON/OFF
- Voltage: 110–120V
- Current: 15A
- Wiring: 3-way compatible (also supports single pole)
- Certification: cULus listed (US & Canada)
Dimmer Specifications
The following specifications apply to the dimmer module, with load ratings stated per dimmer.
-
Dimming Type: Leading Edge (TRIAC)
-
Voltage: 110–120V | 50/60Hz
-
Load Ratings:
- Dimmable LED & halogen: 3–150 W
- Incandescent: 40–600 W
-
Built-in thermal protection: automatic safety cutoff
-
Temperature rating (Ta): up to 130°C (266°F)
-
Mechanical life: 10,000+ dimming cycles (minimum)
-
Housing: flame-retardant polycarbonate (PC)
-
Fit: fits standard North American single-gang electrical wall boxes
-
Certification: UL Certified (U.S. & Canada)
Single-Pole vs 3-Way
-
Single-Pole: Click ON/OFF while rotating the knob, then continue turning to adjust brightness. For lighting controlled from one location.
-
3-Way: Push the knob for ON/OFF, then rotate to adjust brightness. Suitable for single-pole or 3-way wiring; in a 3-way setup, switching is available from two locations.
The selected dimmer type determines the ON/OFF action. Where a plate includes more than one dimmer, the selected type applies to each dimmer.
Use TRIAC-compatible dimmable lamps or drivers and follow the instructions supplied for the exact module. For multi-gang plates, the complete wall box must match the plate’s gang count; follow any required load derating when dimmers are installed together. The single-gang fit specification above refers to an individual dimmer module.
Dimmer Compatibility
- ✅ Works with most dimmable LED and incandescent bulbs
- ✅ Optimized for triac/leading-edge dimmable LEDs
- ❌ Not compatible with trailing-edge, 0–10V, or smart dimmable drivers
- ⚠️ For low-voltage or integrated LED fixtures, consult your supplier
Installation & Support
For wiring instructions and safety info, refer to our Electrical Wiring Guide and Installation Guide. Our team is happy to help — just contact us.
Try Before You Buy
New to PlatePrestige? Order a brass hardware sample kit to preview our finishes and craftsmanship before committing to a full order.
Lifetime finish warranty.
